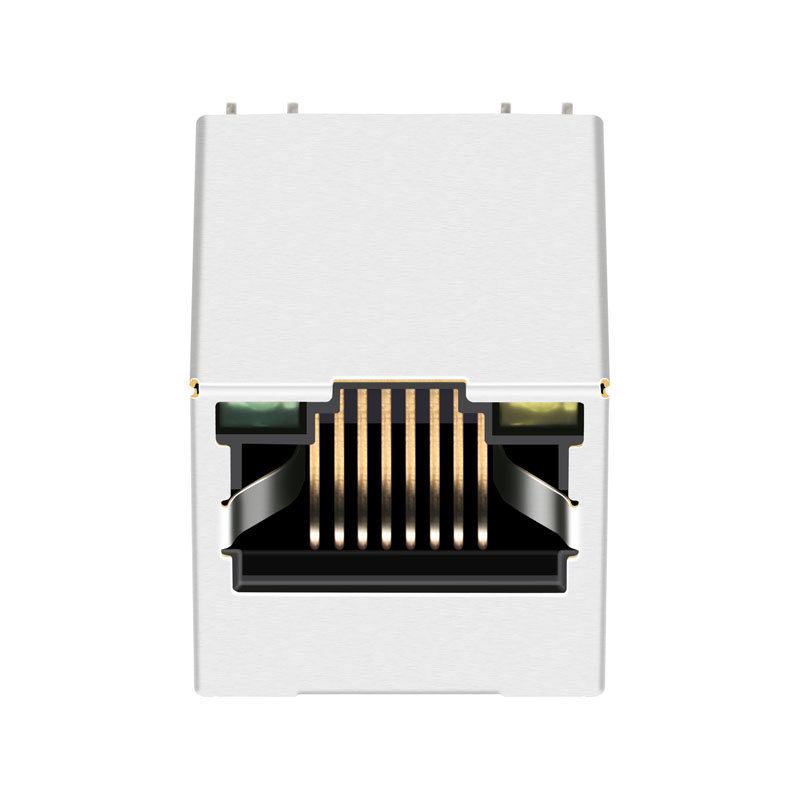

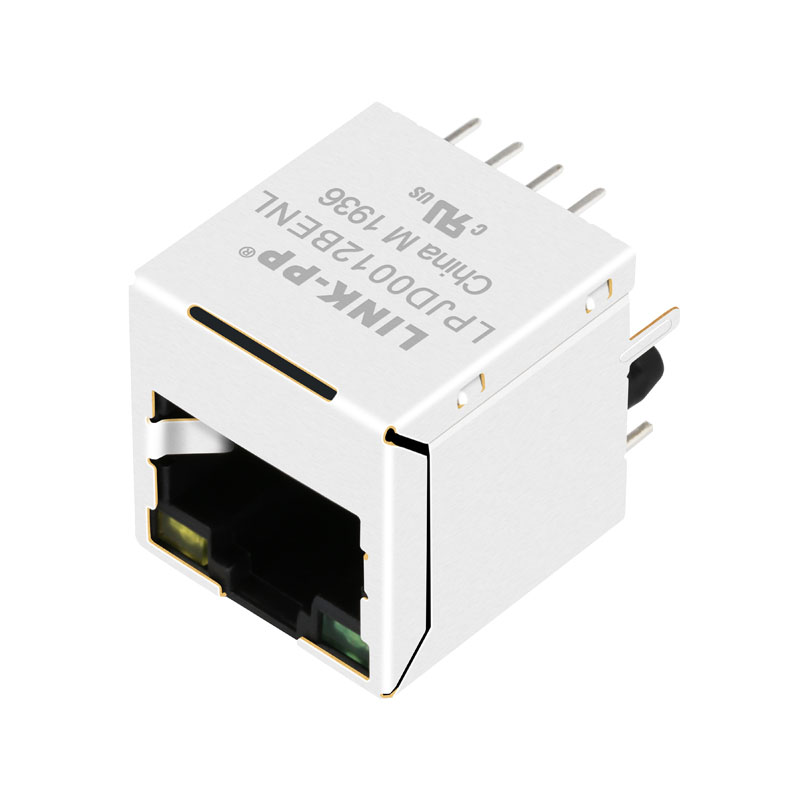

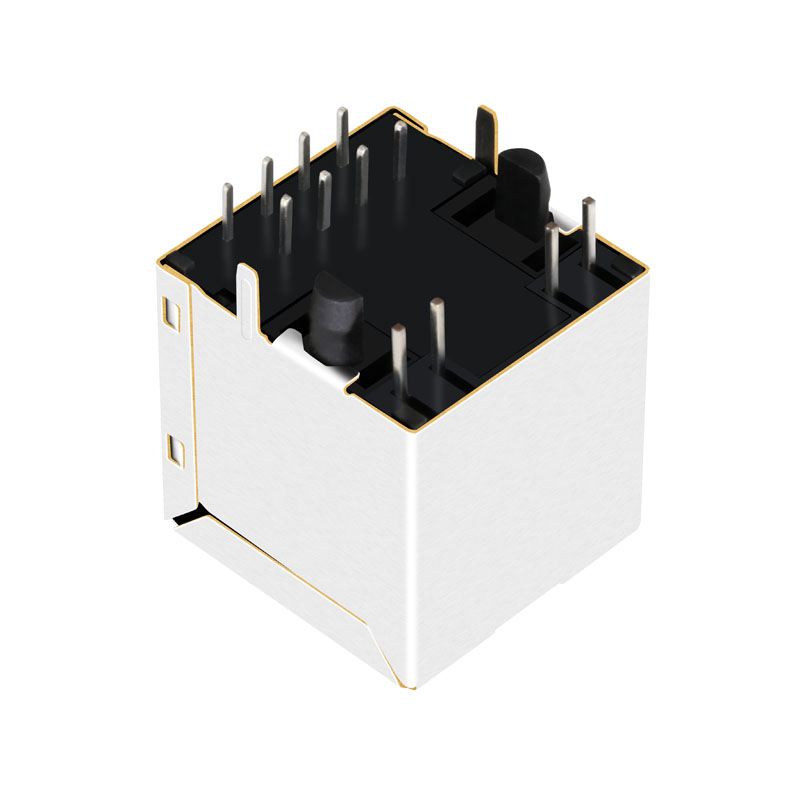

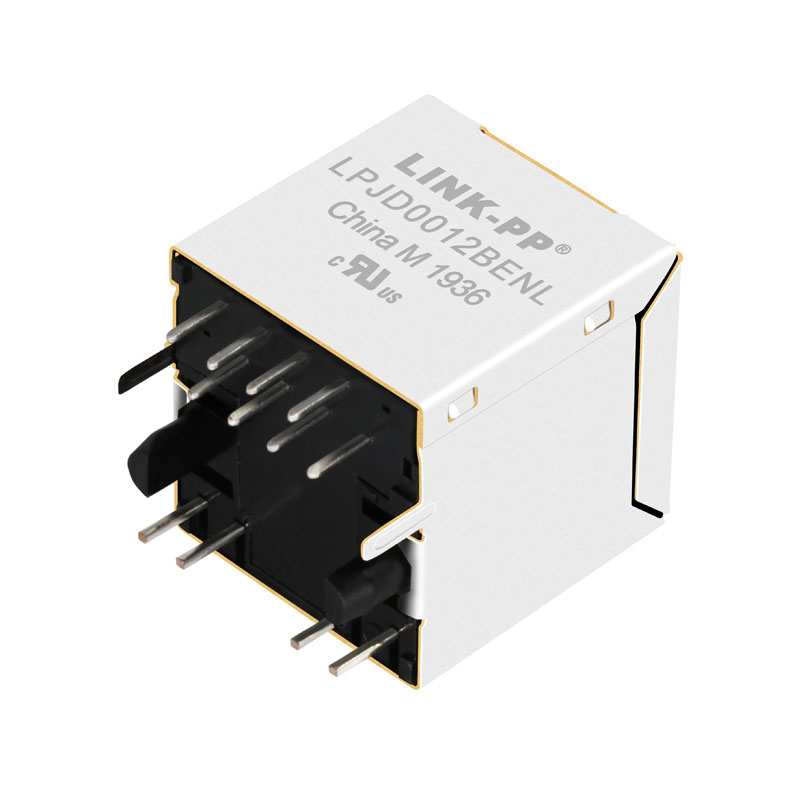

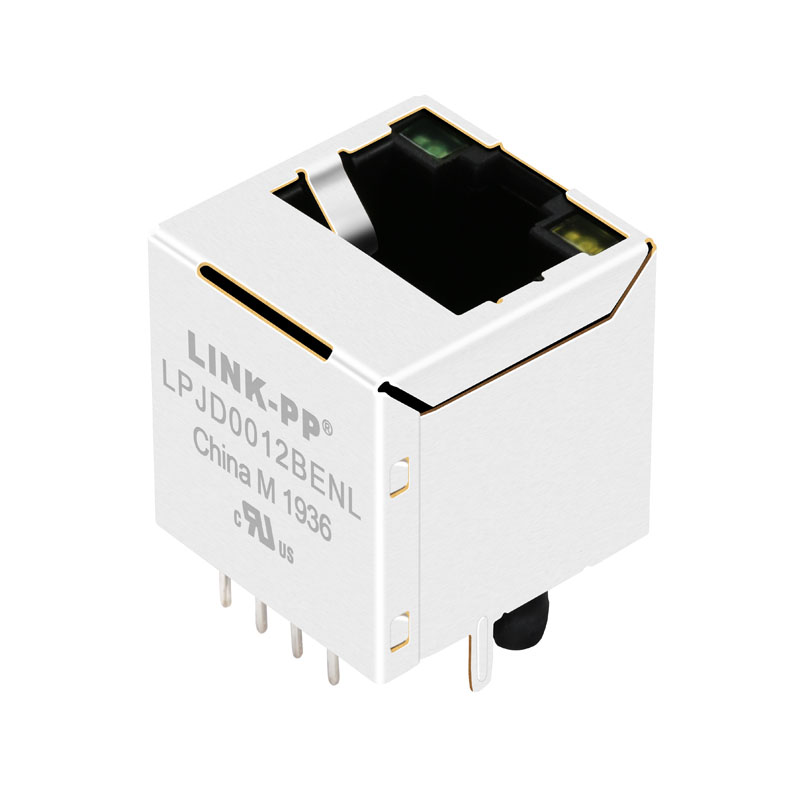

10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
1 / 5
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds

10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds

Send Inquiry

Product Description

Ethernet Magnetic Jack Connector
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With LEDs
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0012BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Diagram Overview
☝ Check Out Our Diverse Range of Products Below
Product Category Matrix
Engineering Dimension Schematic PCB Layout Diagram Product Specification Drawing Circuit Schematic Diagram
Quality Management Process
Factory Inspection Equipment Automated Testing Line
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products as well as strong custom design capabilities.
We are a trusted global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key regions and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Production Workshop Manufacturing Line Inventory and Warehouse
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, but the shipping fee should be paid by the customer.
What is your delivery time?
Products in stock are ready to ship, and mass production items typically take 15 to 30 days.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion regarding your specific requirements.
What is your advantage?
We have over 19 years of professional production experience and have partnered with global industry leaders for many years.
