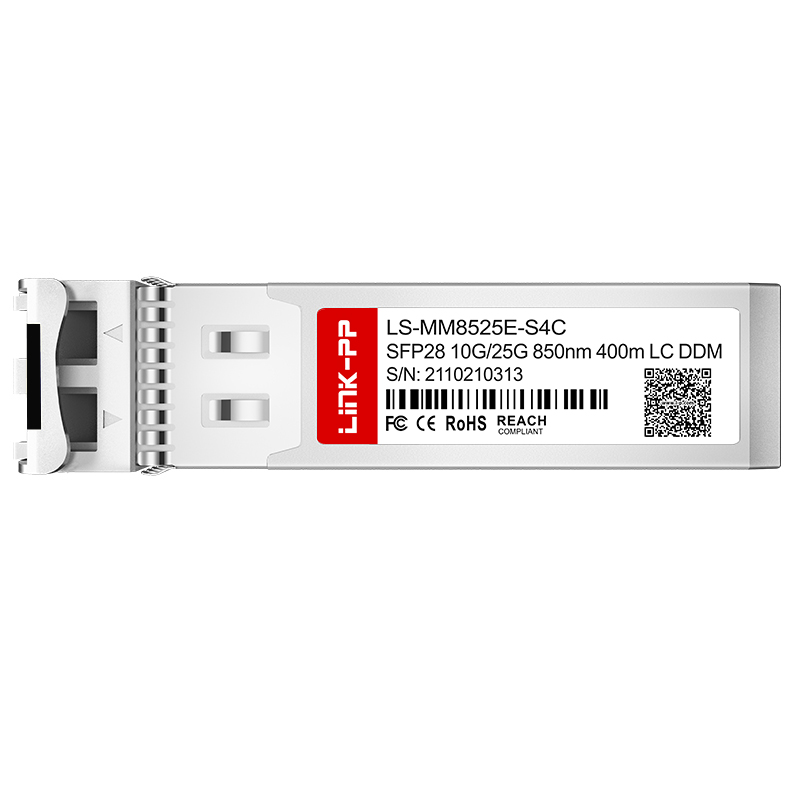

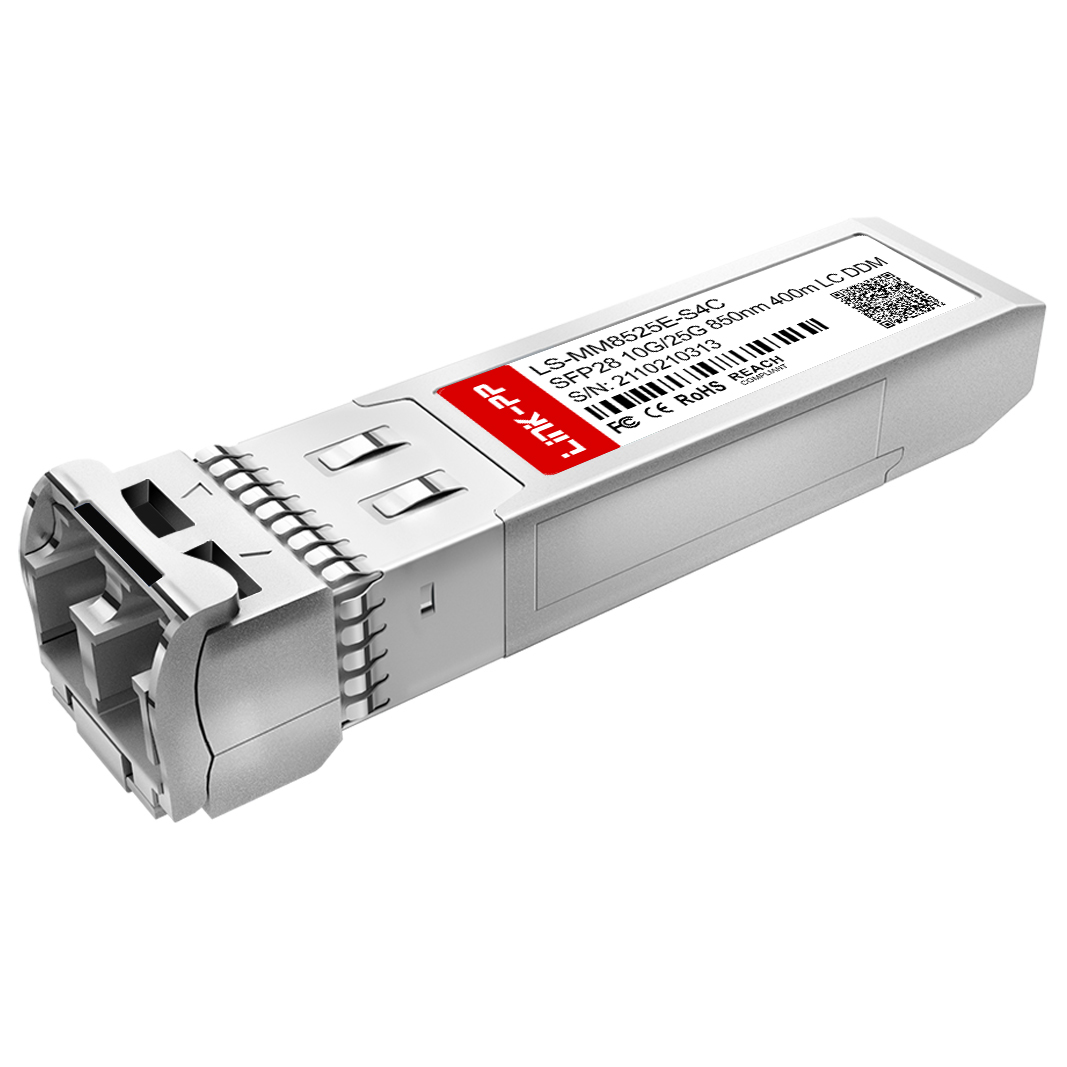

Cisco SFP-10/25G-CSR-S Compatible Dual-rate 10G/25G SFP28 Transceiver 400m MMF Optical Transceiver Module
| Item | 25G SFP28 Transceiver |
| Part No. | LS-MM8525E-S4C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 10G/25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 400m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -6.4~2.4dBm |
| Receiver Sensitivity | <-6dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >2dB |
| DDM/DOM | Supported |
| Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE802.3by |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
High reliability and performance products with mature lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of communication lines, we provide optical cable O&M solutions integrating optical line protection (OLP) and monitoring systems (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Our range offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.
