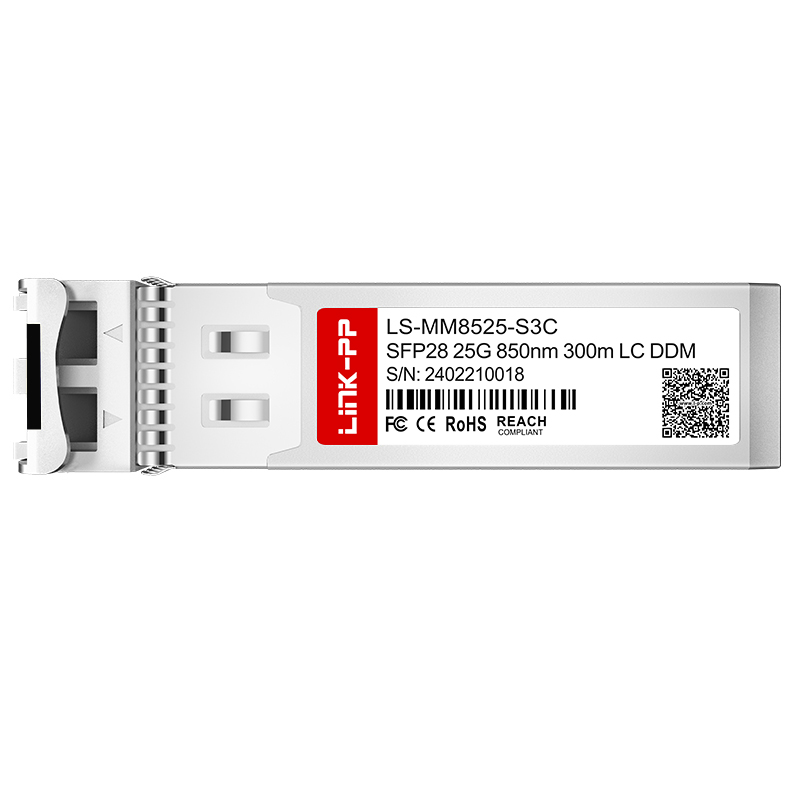

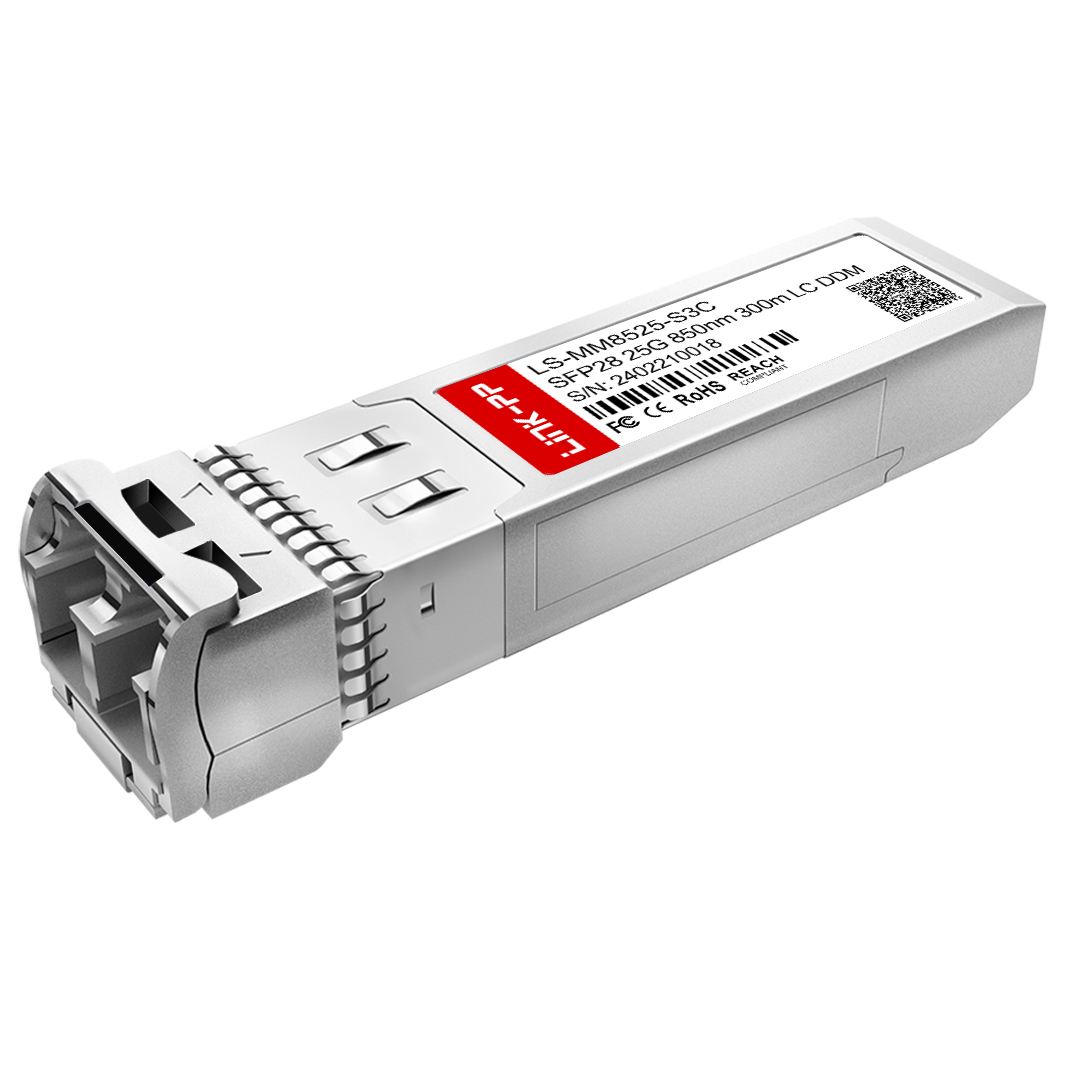

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

1 / 5

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

Send Inquiry

Product Description

⚙️ Products Description

Item	25G SFP28 Transceiver
Part No.	LS-MM8525-S3C
Part Status	Active
Form Factor	SFP28
Max Data Rate	25Gbps
Wavelength	850nm
Max Cable Distance	300m
Media	MMF
Connector	Duplex LC
Optical Component	VCSEL/PIN
TX Power	-6.4~2.4dBm
Receiver Sensitivity	<-6dBm
Receiver Overload	2.4dBm
Power Consumption	≤1W
Extinction Ratio	2dB
DDM/DOM	Supported
Temperature Range	0℃ to 70°C / -40℃ to 85℃
Protocols	SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTION

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

🌐 Optical Transport Networks

End-to-end DWDM device support from active modules to optical passive devices, including amplifiers, Mux/Demux, OPM, ROADM, and more.

☁️ Cloud and Enterprise

High-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions for data centers.

📡 Wireless

Reliable solutions including WDM and Radio over Fiber for 4G/5G systems, covering mid-haul and back-haul needs.

🏠 FTTx

Comprehensive fiber access solutions covering all-optical or combined copper access for global communication.

🛠️ Subsystems

Optical line protection (OLP) and monitoring systems (OLM) ensuring normal operation of communication lines.

✨ Why Choose Us

🏢 Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. With advanced manufacturing facilities and a monthly productive capacity of 3000K, we ensure short delivery times. We offer a full range of optical modules for fixed access, wireless, WDM, and cloud computing data centers globally.

Frequently Asked Questions

1. Are you a manufacturer or a trading company? We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.

2. Can I obtain a sample before placing a mass order? Yes, we provide free samples for quality testing; however, shipping costs are to be covered by the customer.

3. What is the typical delivery time? Stock items are ready for immediate shipment, while mass production typically takes 15 to 30 days.

4. What kind of after-sales service do you provide? We offer a one-year warranty period and provide 24-hour online technical support.

5. Do you accept OEM or ODM orders? Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion regarding your specific requirements.

6. What are your primary advantages? With over 19 years of production experience, we have established long-term partnerships with major industry leaders and maintain high standards of quality and capacity.
