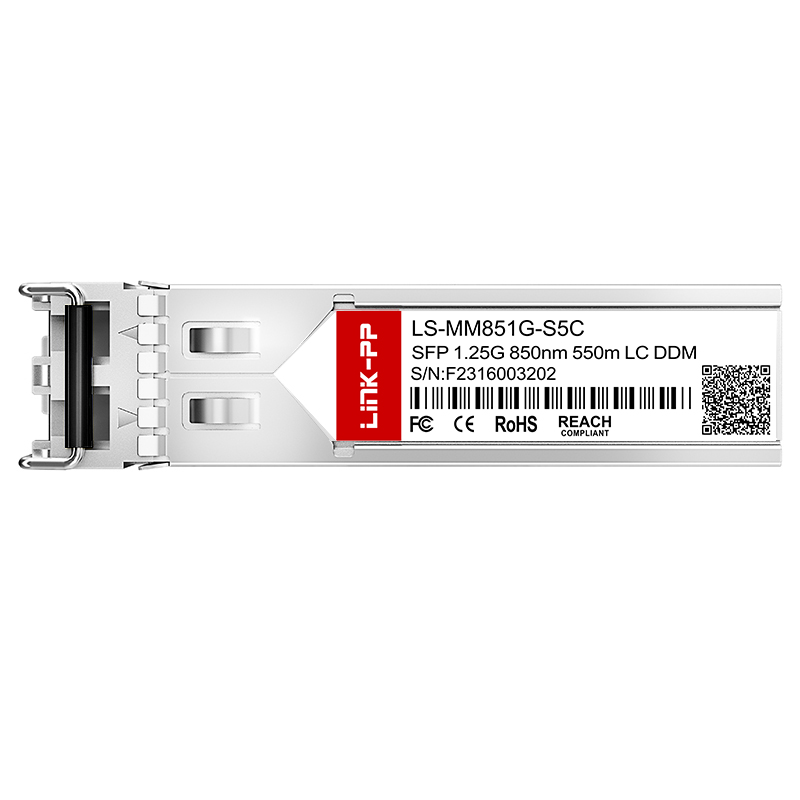

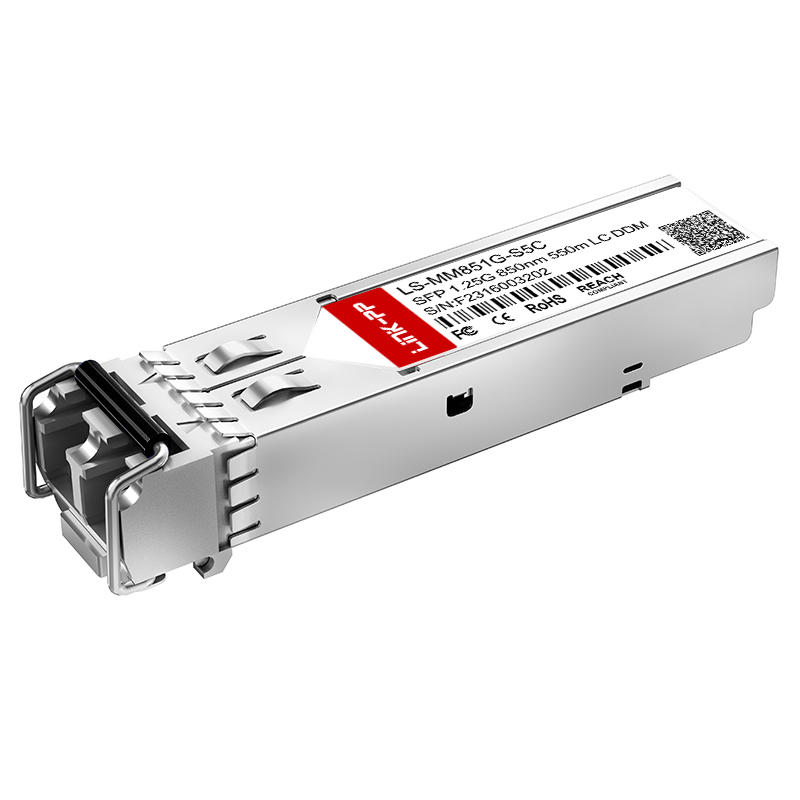

| Item | SFP Module |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 550m |

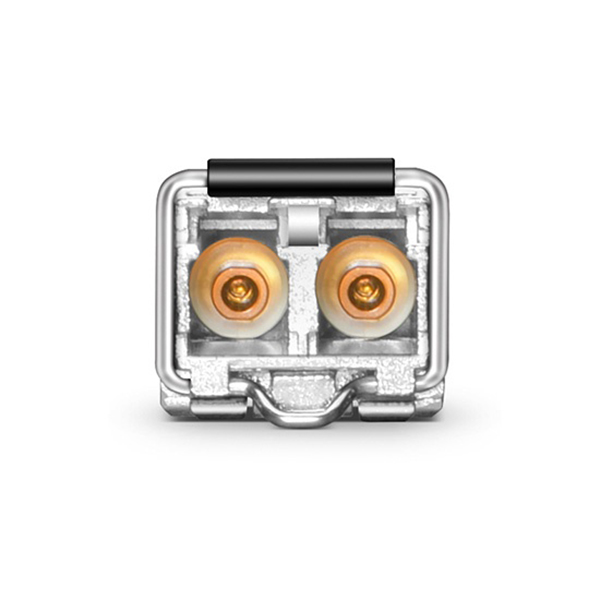

| Connector | Duplex LC |
| Media | Multimode (MMF) |
| Optical Component | VCSEL/PIN |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -9.5 ~ - 3dBm |
| Receiver Sensitivity | < -17dBm |
| Power Consumption | ≤0.8w |
| Bit Error Ratio (BER) | 1E-12 |
| Extinction Ratio | >9dB |
| MTBF | 2,457,002 Hours |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA Compliant |
| Warranty | 5 Years |
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules have been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
For global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
